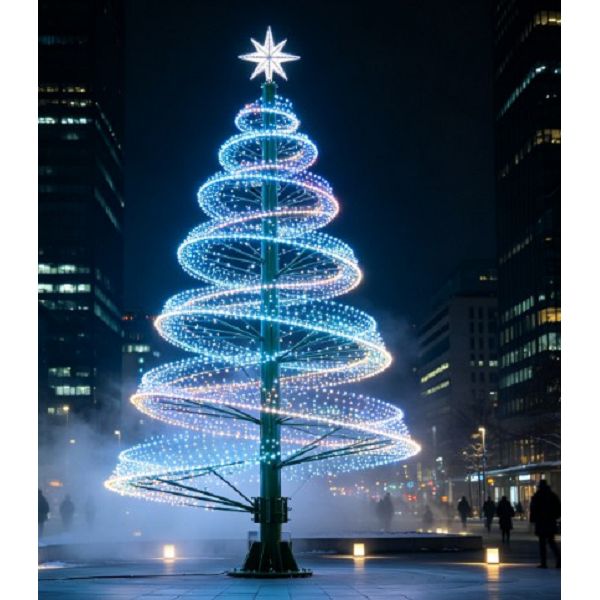

Lub modular kauv silhouette muaj ntau txhiab tus chaw nyob RGB LED nodes spiraling nce mus rau lub hnub qub ruaj ntseg topper. Tsim kom muaj kev xa mus sai raws caij nyoog, cov khoom siv sib xyaw ua ke ntawm cov cuab yeej - pub dawb locking center ncej thiab hloov tau cov ceg arrays uas tswj cov duab geometric symmetry nyob rau hauv cov cua loads.
Structure Engineering & Cheebtsam
Modular Center Mast:Sectional hnyav-phab ntsa steel tubing nrog rau sab hauv alignment pins ruaj ntseg ntsug rigidity yam tsis tas yuav tsum tau tshwj xeeb lifting khoom.
Spiral Branch Armature:Precision- tsim kab rov tav hlau rings welded rau ntsug kev txhawb nqa tav faib LED hlua nro tusyees thoob plaws tag nrho cov ncej.
Base Stability Ring:Weighted ncig perimeter puag koom nrog thauj tog rau nkoj bolt gussets rau kev ruaj ntseg fastening rau pob zeb los yog ballast luj.
Sab saum toj Canopy Mount:Machined locking dab tshos ruaj lub apex hnub qub hlua khi thiab tswj kev nro tas li ntawm cov hlua LED nqis.
Technical Specifications
|
Parameter |
Specification |
|
Qhov siab Options |
3M, 5M, 8M, 10M, 12M |
|
Base Diameters |
1.2M txog 4.2M (proportional) |
|
Kev khiav hauj lwm voltage |
DC24V / AC110V-240V |
|
Hwj chim Draw |
150W – 980W |
|
Ingress Rating |
IP65 fixtures / IP68 nodes |
|
Kev khiav hauj lwm Temp |
-30℃rau 60 degree |
Khoom siv
Kev tsim kho ncej
Q235 cov qauv carbon steel nrog automated robotic MIG welds.
Kev kho saum npoo
Dual - txheej TGIC polyester hmoov txheej, ultraviolet -tiv taus, thickness tsawg kawg nkaus 80 microns.
LED Encapsulation
Puv-ua kom pom tseeb UV-stabilized polyurethane potting compound tiv thaiv hauv Circuit Court boards.
Hlau hlua
Nplaim taws- tiv taus txias- tiv taus PVC lub tsho sab nrauv nrog cov pa oxygen- tsis muaj tooj liab stranded conductors.
Kev ua haujlwm nta
Programmable Xim Hom:Txhawb DMX512 raws tu qauv thiab SD daim npav controllers rau synchronized multi-xim chases, gradient ploj, thiab kev cai pixel-mapped animations.
Collapsible Architecture:Ncej ntog vertically rau hauv interlocking nesting rings, txo qhov ntim ntawm 70 feem pua piv rau nruj conical lug.
Ceev-Txuas Terminals:Plug-thiab-ua si IP68 rated threaded connectors tshem tawm ntawm - qhov chaw thaiv qhov tsis raug thiab ua kom ntau- txoj hlua sib xyaw.
Cua Load Resistance:Aerodynamic spiral gap configuration tso cai rau siab - cua ntsawj ntshab kom dhau los ntawm cov qauv, ntsuas rau Beaufort nplai quab yuam 8 cov xwm txheej thaum thauj khoom kom zoo.
Teeb pom kev zoo & Visual Configuration
LED Configuration:High-efficiency Epistar SMD5050 RGB diodes spaced ntawm 50mm ib ntus raws kev lag luam- qib roj hmab cables.
Luminous Flux:22 lumens rau ib tus neeg LED node, xa siab - pom kev pom kev zoo rau qhov chaw tsaus ntuj thiab tsaus ntuj.
Xim Spectrum:Tag nrho 16.7 lab xim spectrum tso zis ua ke nrog rau siab dawb sov (3000K) thiab txias dawb (6000K) sib npaug raws.
Lifespan Rating:50,000 lub sijhawm ua haujlwm tswj tau ntau dua 70 feem pua thaum pib luminous tso zis.
Cov Txheej Txheem Txhim Kho
Kev npaj Foundation
Muab lub nplhaib puag rau ntawm lub tiaj tiaj, theem saum npoo thiab ruaj ntseg siv cov ntsia hlau nthuav dav lossis cov ntawv pov thawj qhov hnyav ballasts.
Mast Assembly
Ntxig ntsug mast seem ua ntu zus los ntawm hauv qab mus rau sab saum toj, nruj nreem sib xyaw stainless hlau xauv bolts ntawm txhua qhov sib koom ua ke.
Teeb pom kev zoo
Unroll ua ntej- txuas txuas cov hlua LED los ntawm apex dab tshos downwards, fastening intermediate thauj tog rau nkoj clips rau lub nplhaib ncej.
Kev sib xyaw fais fab
Txuas cov kab hauv lub cev tsis muaj dej tsis zoo rau cov khoom siv hluav taws xob sib cais thiab kuaj cov maub los synchronization ua ntej qhov kawg anchoring.
Kev Siv Ib puag ncig
Municipal Plazas:Lub nroog nruab nrab hnub so kev teeb tsa yuav tsum tau ua haujlwm tas li los ntawm huab cua lub caij ntuj no hnyav thiab raug rau pej xeem hnyav.
Commercial Complexes:Cov khw muag khoom sab nrauv sab nrauv thiab lub ru tsev terraces xav tau siab - cuam tshuam rau qhov pom kev ua kom tsav tsheb mus los.
Hospitality Khoom:Kev nkag mus hauv tsev so thiab tsev so vaj txoj hauv kev xav tau kev tshaj lij - qib architectural accent teeb pom kev zoo.
Cov chaw lom zem:Cov chaw ua si lub caij ntuj no cov chaw ua si siv synchronized DMX teeb pom kev zoo qhia thoob plaws ntau lub tsev ntoo synchronized.
Ntim & Logistics
Ntim Hom:Hnyav-lub luag haujlwm corrugated export master cartons ntxiv dag zog nrog perimeter steel strapping thiab sab hauv EPE ua npuas ncauj cushioning.
Pav ca -Pack Efficiency:Cov kab nrib pleb uas tau muab tso rau hauv cov txheej txheem export pallets, ua kom zoo dua qhov chaw ntim hauv pem teb thiab txo qis rau ib -unit ocean freight nqi.
Kev sib cais ntawm cov khoom:Cov hlua LED, cov khoom siv hluav taws xob, cov tswj hwm, thiab cov ntu ntu tau ntim rau hauv cov dej sib txawv -cov hnab ntim kaw kom tiv thaiv kev thauj mus los.
Pallet Dimensions:Standard 1200mm x 1000mm footprint configurations tsim rau 20-ko taw thiab 40-ko taw qhuav van dej hiav txwv ntim.
Customization Muaj peev xwm
Qhov siab thiab qhov sib npaug
Customized structural engineering muaj rau tsis yog-tus qauv qhov siab li ntawm 2M mus txog 15M nrog rau qhov chaw- tshwj xeeb cua load xam.
Xim Kub & Spectrum
Tiav LED diode piv nrog tshwj xeeb RGBW configurations, amber accents, los yog monochromatic festive hues.
Tswj kev sib koom ua ke
Compatibility upgrades rau hauv nruab nrab lub tsev tswj systems, wireless RF tej thaj chaw deb tswj, los yog huab - raws li tej thaj chaw deb teem sij hawm.
Branding kev koom ua ke
Kev cai laser-txiav steel structural toppers, tuam txhab logo medallion mounts, thiab muaj tswv yim xim- txuam hmoov txheej tiav.
Manufacturing Standards
Steel processing:Automated CNC laser txiav thiab khoos phis tawj-tswj tube dabtsi yog khoov tshuab kom paub meej qhov ntev rov ua tau thoob plaws siab- ntim ntau lawm.
Vuam Standards:Certified robotic welding cells ua tiav kev nkag mus txuas ntxiv ntawm txhua qhov siab -kev nyuaj siab- cov kabmob pob qij txha.
Hmoov txheej txheej txheem:Automated nto degreasing, hlau phosphate hloov dua siab tshiab txheej, electrostatic hmoov tshuaj tsuag daim ntawv thov, thiab thermal curing qhov ntawm 200 degree.
Kev soj ntsuam zoo:100 feem pua ntawm hluav taws xob hluav taws xob- hauv kev sim rau 48 teev tas mus li, IP68 immersion kuaj ntawm cov qauv random, thiab qhov ntsuas qhov ntev ua ntej ntim khoom zaum kawg.
Cov lus nug nquag
Q: Dab tsi yog lub neej ntev ntawm LED teeb pom kev zoo nyob rau hauv kev ua haujlwm sab nraum zoov tas li?
A: Cov kev sib xyaw ua ke ntawm LED no yog ntsuas rau 50,000 teev ua haujlwm, txhawb nqa los ntawm qib siab - qib tas li- cov tsav tsheb tam sim no uas tiv thaiv qhov hluav taws xob tsis zoo thiab thermal degradation.
Q: Cov qauv ua li cas tiv taus cua siab thaum lub caij ntuj no cua daj cua dub?
A: Qhov qhib kauv tsim tso cai rau cua kom dhau los ntawm tus ncej es tsis tsim cov nyhuv sail, thaum lub nplhaib steel hnyav ruaj ntseg rau cov pob zeb ua pob zeb lossis cov khoom hnyav hnyav kom muaj kev ruaj ntseg mus txog Beaufort nplai quab yuam 8.
Q: Puas yog cov hlua LED hloov tau yog tias cov ntu ib leeg puas lawm?
A: Yog lawm, cov khoom siv hluav taws xob siv hluav taws xob siv cov ntsaws - thiab - ua si cov khoom siv tsis muaj dej tsis zoo, tso cai rau cov neeg ua haujlwm saib xyuas los hloov cov hlua ib ntu uas puas lawm yam tsis muaj kev cuam tshuam tag nrho.
Q: Yam khoom siv hluav taws xob twg xav tau rau kev teeb tsa kev lag luam?
A: Cov chav nyob ua haujlwm ntawm kev nyab xeeb DC24V qis-voltage outputs uas tau tsav los ntawm huab cua- tiv taus, kaw cov kauj ruam-down transformers uas lees txais cov qauv hauv cheeb tsam AC input voltages.
Q: Cov qauv teeb pom kev zoo puas tuaj yeem synchronized hla ntau tsob ntoo hauv ib qhov project?
A: Yog lawm, units nruab nrog DMX512 decoders tuaj yeem ua daisy- chained mus rau lub hauv paus tswj tswj, ua kom muaj teeb pom kev sib koom ua ke thoob plaws ntau ntau - tsob ntoo zaub.
