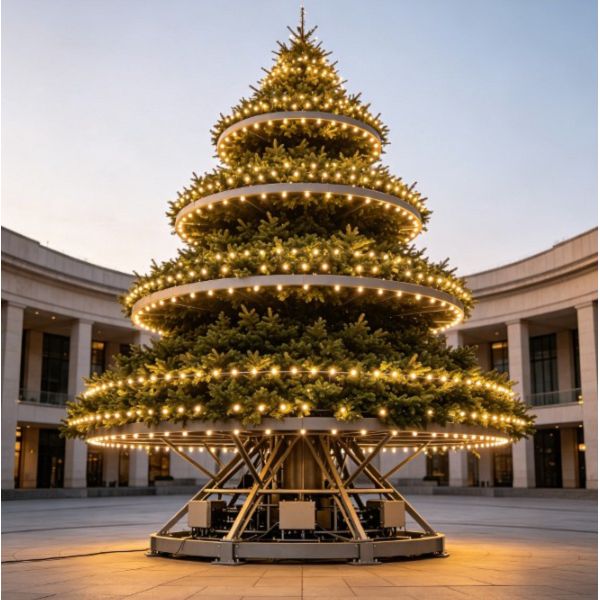

Engineered rau kev lag luam atriums thiab architectural public spaces, cov kev cai multi-tier Christmas tsob ntoo nta ib tug hnyav-cov dej num steel skeleton, segmented platform txheej, thiab ua ntej-wired teeb pom kev zoo, tsim rau ceev ceev mechanical sib dhos thiab ua raws li thoob ntiaj teb kev ruaj ntseg lis dej num.
Cov yam ntxwv zoo
Interlocking Flanges:Precision-machined flange kev sib txuas ua kom muaj kev sib haum xeeb ntsug thiab tshem tawm sway hla ntau theem.
Internal Hlau Trunking:Central mast tswj channels faib lub hwj chim rau ib tug neeg tiers yam tsis tau nthuav tawm sab nraud extension qaum.
Foliage Density Layout:Muab molded polyethylene txheej koob rau kev ntxhib los mos nrog polyvinyl chloride inner koob rau volumetric fullness.
Tso-Nyob rau hauv ceg qhov (sockets):Xim -coded ceg receivers streamline installation ib theem zuj zus thiab tiv thaiv ntawm -qhov chaw ua yuam kev.
Custom Configuration Parameters
Lub hnab ntawv Dimensional
Qhov siab ntawm 5.0m mus rau 30.0m; puag diameters los ntawm 2.5m mus rau 12.0m; tier suav los ntawm 3 mus rau 12 ntsug theem.
Ntoo Palette
Standard ntoo thuv ntsuab, frosted snow- ntsis, dej khov xiav, champagne kub, los yog kev cai Pantone-xim xim.
Kev sib koom ua ke
Optional inspection ladders and care walks -cov platforms ua ncaj nraim rau hauv lub hauv paus mast.
Branding Attachments
Kev cai -fabricated structural nyuaj ntsiab lus muaj peev xwm ntawm kev ruaj ntseg oversized logo medallions thiab tshem tawm arrays.
Skeleton Engineering & Mechanics
Central Mast Core:Hnyav-phab ntsa structural steel yeeb nkab tsim los tiv thaiv qhov siab tshaj plaws khoov lub sijhawm nyob rau hauv eccentric loads.
Base Phaj Stabilization:Bolt-down los yog ballasted dawb- sawv ntsug daim hlau tsim kom hloov qhov hnyav tuag rau hauv pem teb.
Finite Element Analysis:Cov qauv tsim kev cai dhau los ntawm kev siv computer cua-tunnel simulation los xyuas qhov kev ncaj ncees ntawm cov cua hauv cheeb tsam.
Galvanized tiv thaiv:Cov tswv cuab tseem ceeb tau txais kub-dip galvanizing sab hauv thiab tawm los tiv thaiv atmospheric corrosion.
Technical Specifications
|
Parameter |
Specification nthuav dav |
|
Qhov siab |
5.0m – 30.0m |
|
Base Diameter |
2.5m – 12.0m |
|
Tier suav |
3 – 12 qib |
|
Thawj Ncej |
Q355B qauv carbon steel |
|
Nto tiav |
Kub-dip galvanized + hmoov txheej |
|
Foliage Khoom |
Virgin PVC + UV-stabilized PE |
|
Nplaim Retardancy |
NFPA 701 & DIN 4102 B1 tau ntawv pov thawj |
|
Hluav taws xob nkag |
110V - 240V AC / 24V DC tso zis |
|
Teeb Lub Neej |
Yam tsawg kawg 50,000 teev ua haujlwm |
Cov Chaw Ua Lag Luam Ua Lag Luam
Mall Atriums
Monumental focal cov ntsiab lus uas tsav tsheb taug kev hla cov khw muag khoom thiab thauj mus rau cov phiaj xwm raws caij nyoog.
Hotel Lobbies
Siab -kawg raws caij nyoog raws li cov qauv kev tsim vaj tsev zoo nkauj sab hauv.
Public Squares
Huab cua- tiv thaiv pej xeem sib sau ua ke thaj chaw rau kev ua koob tsheej lub caij ntuj no.
Exhibition Centers
Siab - cuam tshuam qhov pom kev rau cov tuam txhab hauv paus hauv paus thiab kev lag luam pavilions.
Khoom siv & Polymer Finishing
Koob Composition:Virgin-qib PVC zaj duab xis (thickness 0.07mm–0.10mm) ua ke nrog kev txhaj tshuaj-pwm PE ceg tswv yim.
Retardant Additives:Environmentally certified halogen{0}}dawb hluav taws kub retardant compounds integrated ncaj qha mus rau hauv polymer extrusion batches.
Powder Coat Shield:UV-tiv thaiv kev tsim vaj tsev- qib thermosetting hmoov txheej siv rau txhua qhov pom hlau ua haujlwm.
Core Binding Hlau:Annealed galvanized hlau hlau core qhwv nrog nplaim taws- cov xov paj rwb retardant kom ruaj ntseg koob tuav.
Teeb pom kev zoo & hluav taws xob faib
Ua ntej -Wired Harnesses
Kev lag luam -qib LED hlua teeb lub Hoobkas- tau teeb tsa raws cov ceg ntoo nrog cov khoom sib txuas tsis zoo.
Illumination Options
Dawb sov (2700K), txias dawb (6000K), los yog RGB chaw nyob DMX-tswj LED chips.
Hloov fais fab
Tsawg-voltage 24V DC theem nrab faib hluav taws xob los ntawm kev lag luam- qib transformers nyob hauv lub hauv paus enclosures.
Rigging Points
Welded steel ncua kev kawm loops ntsuas rau ib tug neeg dai loads txog 50kg ib tier perimeter nplhaib.
Fabrication & Quality Control
Kav Drawing Phase:3D CAD cov qauv thiab cov ntaub ntawv qhia txog kev tsim qauv xa mus rau engineering kos npe -tawm ua ntej kev tsim khoom.
CNC Machining:Automated laser txiav thiab robotic vuam ntawm cov qauv flanges thiab cov phaj hauv paus kom tswj tau ± 1.5 hli kam rau ua.
Prototype Test:Tag nrho - ntsuas kev sib dhos ntawm cov kev cai tier seem hauv Hoobkas kuaj bays los xyuas cov qauv haum.
Kev Ntsuas Zoo:Ultrasonic weld soj ntsuam, galvanizing thickness tests, rub- quab yuam checks, thiab 72- teev burn-in runs.
Ntawm -Site Erection & Assembly
Erection Sequence
Anchoring puag daim hlau, erecting central mast seem module los ntawm module, thiab txo tus kheej tier rings.
Lifting Requirements
Yuav tsum tau tus txheej txheem txiab los yog boom nqa thiab cov cuab yeej rigging yooj yim; tsis muaj tswv cuab hnyav machinery xav tau.
Kev Ua Haujlwm Ua Haujlwm
Tus qauv 10-meter qauv yog sib sau ua ke, xaim, thiab fluffed los ntawm 4 tus neeg ua haujlwm hauv 16 teev ua haujlwm.
Reusability raws caij nyoog
Tsim los rau ntau- xyoo kev xa mus ncig nrog cov khoom siv modular tagging txuam cov phau ntawv sib dhos.
Ntim & Marine Logistics
Export Crating:Steel-cov plywood export crates engineered los tiv thaiv foliage tswv yim thiab tiv thaiv thav duab distortion.
Manifest Labeling:Xim -coded thiab lej sau npe crating manifests txuam rau ntawm - site los ua ke phau ntawv.
Moisture Defense:Lub tshuab nqus tsev-cov hnab ntim cov hnab ntim ntim nrog cov khoom siv los tiv thaiv cov hlua hluav taws xob tiv thaiv cov av noo hauv hiav txwv.
Container Optimization:Zes tier thav duab hauv tus qauv 40-foot high-cube shipping thawv kom txo cov nqi thauj khoom tsawg.
Cov lus nug nquag
Q: Yuav ua li cas cov cua loads xam rau sab nraum zoov teeb?
A: Kev suav suav siv cov ntaub ntawv cua ceev hauv zos, thaj chaw foliage nthuav tawm, thiab yuav tsum muaj qhov hnyav ntawm qhov hnyav uas tau teev tseg hauv cov ntawv tshaj tawm engineering.
Q: Cov ntawv pov thawj kev nyab xeeb dab tsi nrog rau cov nplooj?
A: Tag nrho cov ntaub ntawv foliage suav nrog thib peb -ib tog kuaj daim ntawv pov thawj kuaj xyuas kev ua raws li NFPA 701 thiab DIN 4102 B1 cov qauv.
Q: Cov ntoo puas tuaj yeem sib phim tsis yog - qauv architectural heights?
A: Yog. Central mast segments thiab tier quantities yog engineered kom haum raws nraim hauv pem teb - mus rau - qab nthab clearance qhov ntev.
Q: Yuav hloov cov ceg puas lossis teeb li cas?
A: Cov ceg ntawm tus kheej txuas nrog lub ntsaws- hauv qhov (sockets) thiab tshem tawm ntawm nws tus kheej yam tsis muaj kev cuam tshuam cov txheej txheem nyob ib puag ncig.
Q: Yuav ua li cas yog lub zog faib nyob rau hauv ntsug tiers?
A: Lub hauv nruab nrab lub cev lub cev cable khiav mus rau sab hauv ntawm lub ntsiab mast, pub cov thawv rau huab cua tsis zoo ntawm txhua qib platform.
