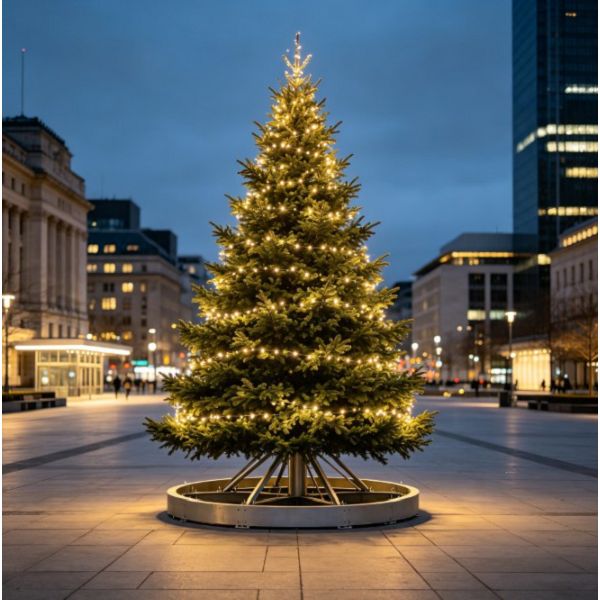

Kev tsim kho rau cov squares hauv nroog, chaw lag luam, thiab cov chaw tsim vaj tsev tsim vaj tsev, Kev Cai Landmark Christmas Tsob Ntoo yog ib qho hnyav -cov dej num ua haujlwm ua ke nrog kev tsim vaj tsev steel engineering nrog siab - cov nplooj ntoo kom tiv taus qhov chaw sab nraum zoov. Ua rau qhov project- tshwj xeeb engineering loads, txhua tsob ntoo sib koom ua ke ntawm cov qauv kev ua haujlwm, cov nplaim hluav taws pov thawj-cov nplooj ntoo, thiab ua ntej-wired coj mus muag- qib teeb pom kev zoo, ua kom muaj kev sib dhos sai, kev nyab xeeb, thiab ntev -lub sijhawm rau pej xeem lub caij nyoog 8} qhov chaw ua haujlwm siab.
Engineering & Structure Integrity
Cua Load Resistance:Cov qauv thav duab tiv thaiv lub cheeb tsam cua tshaj tawm qhov pib mus txog 120 km / h los ntawm ballasted anchoring lossis ruaj ntseg hauv paus bolting.
Tiered Modular Assembly:Sectional stacking tsim tso cai ceev crane hoisting thiab sib dhos, txo ntawm -site installation ncua sij hawm los ntawm 40% piv rau cov tsoos welded moj khaum.
Service Access Channels:Sab hauv ntsug clearance channels thiab tu platforms pab kom muaj kev nyab xeeb kev soj ntsuam thiab kev pab raws caij nyoog ntawm teeb pom kev zoo circuits.
Customization Parameters
Qhov siab Configurations:Scalable ntsug li ntawm 10 meters mus rau 45 meters, engineered nyob rau hauv 2.5-meter ntsug modules.
Base Diameter Ratios:Customizable puag-rau- qhov siab qhov sib piv xws li 1: 2 txog 1: 2.5 kom phim cov ko taw ib puag ncig thiab cov neeg taug kev clearance yuav tsum.
Foliage Density Profiles:Configurable needle counts per linear branch meter, muab tus qauv coj mus muag ceev los yog siab -density alpine foliage profiles.
Xim sib txuam:Pantone-matched needle pigmentation incorporating specialized UV-stabilized masterbatches rau cov tuam txhab lag luam lossis cov ntsiab lus hauv nroog.
Technical Specifications
|
Qeb Parameter |
Technical Specification |
|
Primary Steel Qib |
Q355B cov qauv qis- alloy carbon steel |
|
Central Mast Diameter |
219mm txog 820mm (scaled rau qhov siab) |
|
Kev tiv thaiv corrosion |
Kub-dip galvanized (min. 85um zinc txheej) + polyurethane topcoat |
|
Foliage Khoom |
Extruded PVC / PE composite (thickness 0.1mm, dav 65mm) |
|
Huab cua Resistance |
Tsawg tshaj . 5,000 teev UV raug qhov ntsuas |
|
Hluav taws kub Retardancy |
NFPA 701 thiab DIN 4102 B1 tau ntawv pov thawj |
|
Hardware Standard |
Qib 8.8 structural bolts nrog Dacromet txheej |
|
Kev ntsuas hluav taws xob |
380V / 220V multi{2}}theem nrog IP67 ceev- connectors |
Cov ntawv thov kev lag luam
Nroog Public Plazas
Ua hauj lwm raws li lub caij nyoog nruab nrab hauv zej zog sib sau ua ke anchors rau lub nroog lub caij ntuj no festivals thiab hnub so hloov - ntawm kev ua koob tsheej.
Khw muag khoom vaj tse Complexes
Txhim kho cov neeg xauj tsheb ko taw thiab txuas ntxiv cov neeg tuaj xyuas lub sijhawm nyob hauv qhov qhib -cov chaw ua neej nyob hauv huab cua thiab lub tshav puam hauv khw.
Qhov chaw Resorts & Parks
Tsim iconic hmo ntuj pom cov ntsiab lus uas txhawb nqa cov qhua tuaj noj mov thiab kev lag luam raws caij nyoog kev yees duab thoob ntiaj teb kev tos txais qhua.
Teeb pom kev zoo & Kev kho kom zoo nkauj
Ua ntej -Wired Harnesses:Factory-cov kab hluav taws xob sib txuas uas muaj IP67- ntsuas cov khoom siv hluav taws xob nrawm nrawm faib thoob plaws txhua qib ntsug.
Luminous Distribution:Custom spacing intervals rau kev lag luam LED hlua teeb lossis pixel-mapped node pawg, ua tiav cov teeb pom kev zoo thoob plaws qhov chaw.
Accessory Suspension:Integrated structural load attachment rings muaj peev xwm ncua mus txog 50kg ib tier rau loj ornamental ntsiab thiab geometric toppers.
Manufacturing & Quality Control
Finite Element Analysis
Khoos phib tawj- pab cov qauv simulation txheeb xyuas qhov kev faib tawm ntawm kev ntxhov siab nyob rau hauv cov cua siab tshaj plaws, kev thauj khoom tuag, thiab seismic tej yam kev mob ua ntej txiav cov khoom raw.
Precision CNC Fabrication
Automated laser txiav, neeg hlau vuam ntawm cov qauv dab tshos, thiab ntau -axis drilling ntawm kev sib txuas flanges kom ntseeg tau xoom kam rau ua tsis sib haum thaum lub sij hawm sib dhos.
Kev Sib Tham Sib Tham
Tag nrho - nplai ntsug qhuav- haum ntawm lub hauv paus modules thiab thawj cov qauv rings nyob rau hauv lub Hoobkas vaj tsev kom paub tseeb geometric alignment thiab kev twb kev txuas clearance.
Installation & Site Execution
Erection Sequence:Cov txheej txheem lifting raws tu qauv pib nrog lub hauv paus nplhaib anchoring, sequential ntsug mast ntu hoisting, radial caj npab tus pin-kev sib txuas, thiab zaum kawg sab nrauv foliage vaj huam sib luag dai.
Tooling Requirements:Kev xa xov tooj ntawm tes crane nrog qhov tsawg kawg nkaus nqa lub peev xwm sib npaug rau ntu qhov hnyav, synchronized torque wrenches rau cov qauv fasteners, thiab cov ntawv pov thawj ua haujlwm saum huab cua.
Ua ntej-Kev Xa Mus Los:Kev tshuaj xyuas lub zog sib koom ua ke, kev ntsuas cov kav dej ntsug ntsug ntawm kev hla laser, thiab kev ntsuas hluav taws xob txuas ntxiv ua ntej xa mus rau pej xeem.
Ntim & Logistics
Modular Nesting Crates:Steel-cov thawv thauj khoom tsim los rau cov khoom siv ua haujlwm thiab tiv thaiv foliage modules los ntawm compression distortion thaum caij tsheb thauj mus los.
Kev tiv thaiv dej noo:Kev lag luam- qib qis- qhwv wrapping thiab desiccant tso rau hauv cov khoom siv hluav taws xob los tiv thaiv kev puas tsuaj thaum lub sijhawm thauj dej hiav txwv.
Manifest Labeling:Xim -coded structural tagging txuam engineering los ua ke kos duab kom nrawm sorting thiab staging thaum tuaj txog ntawm qhov project site.
FAQ
Q: Dab tsi yog tus qauv tsim thiab xa tawm lub sijhawm?
A: Kev tsim khoom yuav tsum tau 30 mus rau 45 hnub tom qab kev pom zoo ntawm cov qauv kos duab, nrog rau cov sijhawm thauj khoom hauv hiav txwv sib txawv ntawm qhov chaw nres nkoj thaj chaw.
Q: Cov qauv tsim ua li cas thiaj li muaj cua kub ceev hauv cov chaw ntug dej hiav txwv?
A: Cov kws tshaj lij ntsuas cov ntaub ntawv huab cua hauv zos los xam cov qhov hnyav ntawm lub hauv paus ballast, txiv leej tub -xov hlau qhov yuav tsum tau ua, thiab nce steel phab ntsa thicknesses kom tau raws li cov cai hauv cheeb tsam.
Q: Puas yog hloov cov nplooj ntoo thiab cov khoom siv hluav taws xob puas tau npaj tau?
A: Tag nrho cov seem modular yog tsim los siv cov qauv jig qauv, tso cai hloov cov nplooj ntoo los yog cov hlua khi kom raug sib tw thiab xa tuaj raws li qhov kev thov.
Q: Yuav tsum npaj pej xeem dab tsi ntawm - qhov chaw ua ntej kev teeb tsa ntoo?
A: Lub hauv paus pob zeb ua kom muaj zog ntxiv rau cov neeg siv khoom- muab thauj tog rau nkoj bolt nro thiab overturning lub sijhawm tshwj xeeb yuav tsum tau kho thiab txheeb xyuas ua ntej siv crane.
