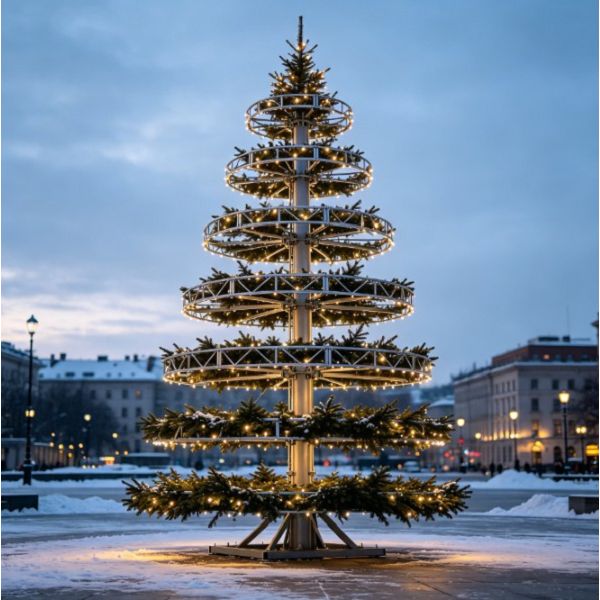

Tsim kom muaj kev xa tawm sai sai nyob rau hauv siab - tsheb khiav lag luam thiab hauv nroog ib puag ncig, cov ntoo Christmas modular no muaj cov txheej txheem steel skeletal thiab hnyav-cov haujlwm ceg modules uas txo qis lub sijhawm teeb tsa thiab kev siv tshuab hnyav. Ua rau cov chaw uas yuav tsum tau loj- teev hnub so nthuav tawm txog li 25 meters, lub kaw lus siv qhov chaw ntsug-ncej load-cov kabmob tsim ua ke nrog cov xim-coded, sau npe rau ceg tiers los ua kom cov neeg ua haujlwm sib dhos.
Architectural Framing & Structure Core
Nplhaib-Lock Modular Assembly:Cov neeg ua haujlwm poob- hauv kev sib txuas bracket uas tso cai rau erection ntawm ntau-tier cov qauv yam tsis muaj cov cuab yeej tshwj xeeb hoisting rau nruab nrab- loj units.
Galvanized Steel Center Mast:Siv tuab-phab ntsa Q235 carbon steel tubing anched mus rau cov qauv ballast puag, engineered los tiv thaiv ib puag ncig cua siab.
Plug-thiab-Play Trunk Wiring:Nta ua ntej-cov kab txuas nrog huab cua- cov khoom siv tiv taus, tshem tawm cov hlua txuas txuas ntxiv thiab txiav lub sijhawm teeb tsa hluav taws xob.
Compact Off-Season Storage:Sib tsoo rau hauv stackable steel crates thiab bundled ceg, txo cov warehouse cia ntim thiab xa rov qab cov nuj nqis.
Technical Parameters
|
Parameter |
Specification |
|
Muaj Heights |
6m, 9m, 12m, 15m, 18m, 21m, 25m |
|
Base Diameters |
Proportional scaling ntawm 3.5m mus rau 10m |
|
Central Mast |
114mm-325mm siab - zaus welded steel |
|
Foliage Khoom |
100% nkauj xwb PVC & PE, $\\ge 0.2mm $ thickness |
|
Hluav taws kub Retardancy |
NFPA 701 & EN 13501-1 Class B-s1, d0 |
|
Cua Resistance |
Mus txog Beaufort Scale 8 nrog cov ballast kom zoo |
|
Kev ntsuas hluav taws xob |
110V-240V AC input, 24V DC tso zis, IP65 |
Cov ntawv thov kev lag luam
Khw Muag Khoom Atriums:Muab qhov pom kev cuam tshuam hauv ntau- zaj dab neeg cov chaw muag khoom thaum khaws cia qhov yuav tsum tau ua kom muaj xwm txheej ceev egress clearance nyob ib ncig ntawm lub hauv paus puag ncig.
Lub Nroog Squares:Nrog rau kev hloov pauv huab cua sab nraum zoov huab cua, sub- xoom kub poob, thiab kev cuam tshuam rau pej xeem tsis tu ncua hauv cov chaw qhib hauv nroog.
Chaw Ua Haujlwm & Hotel Lobbies:Muab cov koob kom zoo dua qub thiab zais cov xov hlau sab hauv kom ze rau - saib ntau yam hauv siab - qhov chaw tos txais qhua.
Theme Parks & Entertainment Venues:Engineered rau kev teeb tsa ceev ceev thaum hmo ntuj thaum lub caij ua si hauv lub caij nyoog tsis muaj kev cuam tshuam cov neeg tuaj xyuas txhua hnub.
Mechanical Load & Assembly Advantages
Tiered Load Distribution
Lub hauv paus mast hloov qhov hnyav sib npaug los ntawm welded flange daim hlau ntawm 2-meter ib ntus, tiv thaiv cov qauv leaning hauv qab hnyav.
Tus kheej -Txhim kho Radial Brackets
Precision- punched slots xauv ceg ntxig hooks ntawm taag 45-degree cov ces kaum, tshem tawm phau ntawv qhia kev ua yuam kev thaum teeb tsa.
Ballast Weight Base Daim phiaj
Tsim los nrog ntau- ceg ntoo khaub lig- ncej txais cov pob zeb ua pob zeb lossis cov tso dej tso dej, ua kom cov qauv ruaj khov yam tsis muaj kev khawb av mus tas li.
Caij nplooj ntoos hlav Steel ceg Cores
Lub ntsiab ceg stems siv 4 hli caij nplooj ntoos hlav steel hlau uas tiv thaiv kev ruaj khov bending qaug zog hla ntau qhov kev teeb tsa thiab lub voj voog tawg.
Khoom siv & Metallurgy Standards
Framework Metallurgy:ASTM A500 kub-dip galvanized carbon steel structural tubing kho nrog sab nraum zoov- qib polyester hmoov txheej.
Polymer compounds:Nplaim taws-cov tawv tawv PVC strips thiab txhaj tshuaj- pwm PE ceg tswv yim tsim los tiv thaiv- UV additives los tiv thaiv polymer embrittlement.
Hardware & Fasteners:Qib 8.8 zinc-plated structural bolts, stainless hlau locking pins, thiab tamper- tiv thaiv los ua ke screws.
Illumination Tsim:Epistar SMD LED chips nyob rau hauv kev txhaj tshuaj-molded acrylic plhaub nrog PUR waterproof tsho tshaj tooj liab hlau cores.
Teeb pom kev zoo & Illumination Systems
Ua ntej-Lit LED Kev sib xyaw:Sov dawb (2700K) lossis RGB hlua teeb lub Hoobkas-woven rau ceg tswv yim kom ntseeg tau tias cov teeb pom kev zoo sib xws.
DMX Programmable Control:Synchronized pixel-mapping LED nodes muaj peev xwm khiav lub teeb dynamic qhia ntawm tus qauv DMX512 raws tu qauv.
Ornament Load Capacity:Ceg qauv txhawb nqa los txhawb kev lag luam ornaments hnyav txog 500 grams ib qhov txuas.
Apex Structural Spigot:Xws li ib lub nplhaib mounting rau sab saum toj kom ruaj ntseg loj illuminated fiberglass los yog hlau ntoo toppers.
Kauj Ruam -los ntawm -Txoj Kev Npaj Ua Haujlwm
Foundation Leveling
Muab tus ntoo khaub lig-puag rau ntawm qhov chaw tiaj tus thiab ruaj ntseg nrog suav ballast qhov hnyav sib piv cov cua hauv zos.
Mast Erection
Hoist thiab ntsia liaj qhov rooj sab hauv nruab nrab ncej mus rau lub hauv paus flange, siv ib theem ntsug kom ntseeg tau tias kev sib raug zoo.
Tiered Insertion
Ntxig ceg modules ua ntu zus los ntawm hauv qab mus rau sab saud, sib xws xim -coded rings rau cov ceg cim npe.
Hluav taws xob sib txuas
Plug ntsug lub cev muaj zog harnesses ua ke ua ke los ntawm tier, xaus ntawm lub ntsiab huab cua -cov ntaub ntawv pov thawj.
Engineering Customization Options
Proportion & Height Adjustments:Kev cai structural engineering rau tsis yog - qauv qab nthab qhov siab, txwv hneev taw, lossis qhov chaw sab nraum zoov tshwj xeeb.
Koob Xim Matching:Pantone-pvc / PE koob muaj rau kev sib tw hom, daus-flocked tiav, lossis xim hlau.
Ceg Density Variations:Cov lus qhia txawv txawv suav ib 'meter' hloov kho raws li cov peev txheej tshwj xeeb thiab cov kev xav kom pom tag nrho.
Fais fab Distribution Specs:Kev koom ua ke nrog cov qauv ntsaws hauv cheeb tsam (UL, CE, SAA) thiab tshwj xeeb ntse - tswj lub thawv fais fab.
Ntim & Thauj Specifications
Modular Crate System:Lub hauv paus ntsiab lus tau ntim rau hauv cov thawv hnyav hnyav lossis stackable steel thauj tawb.
Moisture Barrier Sealing:Cov ntaub qhwv nplooj ntim rau hauv hnyav- ntsuas lub hnab polyethylene nrog desiccants los tiv thaiv pwm thaum hla dej hiav txwv.
Container Space Optimization:Engineered qhov ntev tsim los ua kom siab tshaj 40-ko taw siab lub thawv ntim, txo cov nqi thauj khoom ib-ntu.
Component Serialization:Txhua lub thawv thiab ceg pob ntawv sau nrog cov lej sib raug rau tus qauv tsim qauv.
Cov lus nug nquag
Q: Lub sij hawm sib dhos li cas rau 12-meter lag luam ntoo?
A: Cov neeg ua haujlwm tau kawm ntawm plaub tus kws tshaj lij feem ntau ua tiav cov tshuab erection, ceg fluffing, thiab hluav taws xob txuas hauv 6 mus rau 8 teev.
Q: Cov ntaub ntawv puas ua raws li kev soj ntsuam kev nyab xeeb hluav taws hauv zos?
A: Tag nrho cov nplooj ntoo thiab cov khoom siv kho kom zoo nkauj muaj cov ntaub ntawv soj ntsuam kev soj ntsuam ywj pheej tshawb xyuas kev ua raws li NFPA 701 thiab EN 13501-1 hluav taws kub retardancy codes.
Q: Cov ntoo puas tuaj yeem tiv taus qhov hnyav sab nraum lub caij ntuj no?
A: Yog lawm, thaum ntsia nrog cov chaw tsim khoom- qhov hnyav ballast, cov txheej txheem steel galvanized yog tsim kom ruaj khov nyob rau hauv siab - cua sab nraum zoov ib puag ncig.
Q: Yuav ua li cas hloov cov ceg ntoo yog tias muaj kev puas tsuaj?
A: Cov ceg ntoo yog tsim nyob rau hauv cov txheej txheem modular; Hloov cov modules sib xws rau cov qib siab tshwj xeeb tuaj yeem txiav txim tus kheej.
Q: Cov khoom siv dab tsi uas yuav tsum tau ua rau kev txhim kho ntoo tshaj 15 meters?
A: Ib lub tshuab nqa me me lossis lub xov tooj txawb crane tau pom zoo rau kev nyab xeeb nyob rau sab saud -tier seem thiab txuas siab - qib hluav taws xob harnesses.
