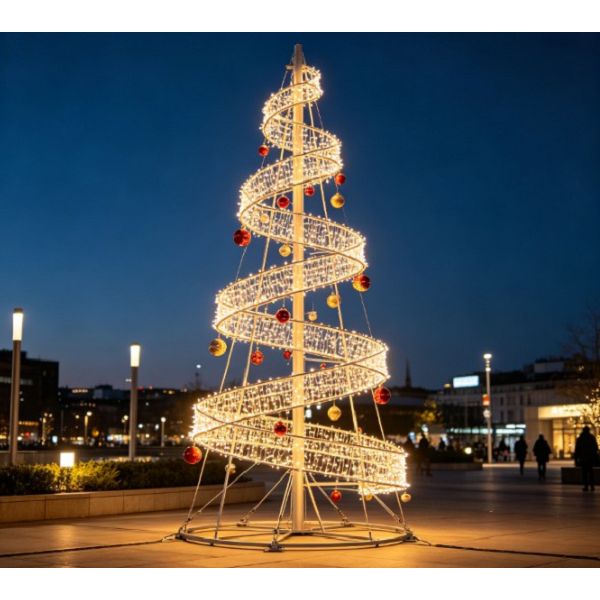

Engineered rau hauv nroog thiab kev lag luam hnub so qhia, no modular kauv Christmas tsob ntoo nta ib tug hnyav -lub luag hauj lwm collapsible steel ncej ua ntej-strung nrog coj mus muag- qib LED illumination thiab shatterproof ornaments. Qhov nro-kab hluav taws xob ruaj khov tswj kev ua haujlwm ruaj khov nyob rau hauv cua mus txog 25 m / s, thaum cov seem architecture txiav ntawm - lub sijhawm sib dhos ntawm 60%.
Kev tsim qauv vaj tsev
Modular Mast
Kub-dip galvanized steel tubing (2.5 hli phab ntsa tuab) nrog snap-pin txuas rau cov cuab yeej- dawb ntsug erection.
Tension Helix
Siab - tensile caij nplooj ntoos hlav steel hlau qhia uas tswj cov suab sib xws thiab txhawb nqa cov khoom dai yam tsis muaj sagging.
Kev koom ua ke hauv paus
Gusseted foundation rings anchored ntawm pob zeb expansion bolts los yog hnyav -cov dej num hauv av.
Technical Specifications
|
Parameter |
Cov ntaub ntawv Specification |
|
Muaj Heights |
3m, 5m, 8m, 10m, 12m |
|
Base Diameters |
1.2m txog 4.2m (proportional) |
|
Kev khiav hauj lwm voltage |
24V DC / 110V-240V AC |
|
Cua Load Rating |
Mus txog 25 m / s nrog ballast |
|
Kev tiv thaiv Ingress |
IP65 waterproof |
|
Qhov kub thiab txias |
-40℃rau +50 degree |
Xaiv cov khoom siv
Ncej:Q235 cov qauv carbon steel tiv thaiv los ntawm thermoset polyester hmoov txheej (DFT Ntau dua lossis sib npaug rau 80μm).
Kev tsim kho ornament:Txhaj-moulded UV-stabilized polycarbonate (PC) thiab polyethylene (PE) plhaub tiv taus daj, thermal tawg, thiab cuam tshuam.
Cable Cable:100%.
Fasteners:Marine-qib 304 stainless hlau bolts, txiv ntseej, thiab tuav tuav.
Nta
Tool-Free Sectional Locking:Caij nplooj ntoos hlav-loaded snap pins thiab twist-lock connectors tshem tawm qhov xav tau rau cov cuab yeej siv tes tshwj xeeb thaum lub sij hawm ntsug erection.
Integrated Harness Routing:Factory-pre-wired teeb pom kev zoo channel tiv thaiv cable entanglement thiab tiv thaiv circuits los ntawm mechanical puas thaum sib dhos.
Shatterproof Ornaments:Factory- ruaj ntseg zoo nkauj spheres thiab baubles xauv mus rau lub kauv hlau helix ntawm mechanical fasteners es tsis yog nplaum daim ntawv cog lus.
Dynamic Illumination Compatibility:Txhawb DMX512 maub los rau synchronized xim- hloov cov kab ke thiab programmable teeb pom kev zoo.
Teeb pom kev zoo / Kho kom zoo nkauj
LED Specifications
Epistar SMD5050 / DIP concave chips nrog lub kaum sab xis ntawm 120 degrees thiab luminous efficiency ntawm 90 lm / W.
Xim kub xaiv
Sov Dawb (2700K), Txias Dawb (6500K), RGBW puv - xim sib xyaw, thiab kev tswj hwm pixel.
Ornament Ntau yam
Ua ke glossy, matte, thiab holographic shatterproof spheres nyob rau hauv txoj kab uas hla ntawm 80mm mus rau 200mm, ruaj tiv thaiv kev vibrational loosening.
Fais fab faib
Centralized waterproof tis thawv nrog integrated luv- Circuit Court thiab thermal overload tiv thaiv.
Kev teeb tsa
Kev npaj qhov chaw:Xyuas kom tiaj tus, thauj khoom-cov kabmob pob zeb lossis cov av compacted muaj peev xwm txhawb nqa qhov hnyav ballast.
Base Assembly:Bolt lub segmented puag nplhaib ua ke siv stainless hlau kho vajtse thiab qib siv adjustable shims.
Vertical Erection:Txuas lub hauv paus telescopic mast, winch lub qaum kauv tier upward, thiab xauv intermediate structural nro cables rau hauv qhov chaw.
Kev sib xyaw ntawm Circuit Court:Txuas IP65 waterproof ceev-plugs los ntawm txhua theem mus rau lub hauv paus fais fab mov lub thawv thiab ua continuity xeem ua ntej energizing.
Kev thauj mus los
Ntim Configuration:Knockdown Cheebtsam ntim rau hauv kev txhawb nqa export-qib corrugated cartons thiab hnyav- lub luag haujlwm plywood crating.
Palletization:Forklift-tau tshaj ntoo skids tsim rau txheem thawv ntim khoom (20GP / 40HQ).
Kev sib cais ntawm cov khoom:Fragile ornaments khaws cia rau hauv partitioned internal cellular cardboard inserts los tiv thaiv kev sib txhuam kev puas tsuaj.
Kev tiv thaiv dej noo:Lub tshuab nqus tsev- kaw los tiv thaiv-corrosion VCI yas liners npog tag nrho cov hlau ncej.
Daim ntawv thov
Municipal Public Squares
Loj -scale pej xeem hnub so installation yuav tsum muaj pej xeem siab - cheeb tsam kev nyab xeeb thiab cua stability.
Kev lag luam vaj tse
Lub khw muag khoom sab nrauv nkag thiab hauv nruab nrab atriums tsav tsheb taug kev raws caij nyoog thiab kev muag khoom muag.
Chaw Ua Si & Resorts
Ib puag ncig festive xav tau kev ua haujlwm tas li los ntawm huab cua hnyav rau lub caij ntuj no.
Corporate Campuses
Kev tshaj lij sab nrauv kho kom zoo nkauj nthuav qhia xav tau kev xa tawm sai thiab lub sijhawm ua kua muag.
Kev kho kom haum
Qhov siab & Pitch Customization:Kev tsim kho vaj tsev kho kom haum rau cov kev taw qhia tshwj xeeb spatial, cua thauj thaj chaw, lossis txwv kev txwv kev tsim vaj tsev.
Xim Palette Matching:Pantone- sib phim hmoov txheej rau cov qauv thav duab thiab kev cai xim schemes rau cov hniav ornaments.
Voltage Localization:Kev teeb tsa hluav taws xob hauv cheeb tsam sib piv cov qauv hauv zos (120V North American plugs, 230V European connectors).
Branding Integration:Custom-engineered illuminated topper motifs lossis puag-ib puag ncig logo mounting daim hlau.
Kev tsim khoom
Laser txiav:CNC fiber ntau laser txiav tshuab kom ntseeg tau qhov ntev ntev nyob rau hauv ± 0.1 hli rau cov qauv pob qij txha thiab cov phaj hauv paus.
Robotic Vuam:MIG/TIG automated robotic welding cells xa cov kev nkag mus rau cov khoom sib xws thiab cov khoom siv thauj khoom-cov kabmob sib xws.
Kev kho deg:Automated multi-theem tshuaj pretreatment, phosphate hloov dua siab tshiab, electrostatic hmoov txheej, thiab thermal curing qhov cub.
Kev soj ntsuam zoo:100% weld seam tshuaj xyuas los ntawm kev kuaj ultrasonic, ntsev- tshuaj tsuag corrosion kuj kuaj (tsawg kawg 500 teev), thiab 48- teev txuas hluav taws xob hlawv-hauv kev sim rau txhua qhov teeb pom kev zoo.
FAQ
Q: Dab tsi yog qhov kev cia siab lifespan ntawm cov qauv txheej txheem?
A: Cov galvanized thiab hmoov-coated steel thav duab muab lub neej kev pab ntau tshaj 8 mus rau 10 xyoo nyob rau hauv ib txwm raws caij nyoog xa mus thiab tawm - caij nyoog cia sab hauv tsev.
Q: Cov qauv ua li cas tiv taus cua siab?
A: Lub conical kauv geometry inherently txo qhov nruab nrab ntawm lub ntiajteb txawj nqus, thaum lub nro-cable matrix thiab rated hauv av anchoring faib cua loads tusyees thoob lub hauv paus nplhaib.
Q: Puas muaj cov khoom hloov pauv yog tias puas lawm?
A: Yog, ib tus neeg ornaments siv modular mechanical attachment brackets, tso cai rau kev hloov pauv sai yam tsis muaj dismantling lub teeb pom kev zoo.
Q: Cov ntawv pov thawj kev nyab xeeb hluav taws xob dab tsi ua rau cov teeb pom kev zoo sib xws?
A: Tag nrho cov khoom siv hluav taws xob, cov hlua hluav taws xob, thiab cov kab hluav taws xob ua tau raws li CE, RoHS, thiab UL- tau teev cov qauv rau kev lag luam sab nraum zoov.
Q: Muaj pes tsawg tus neeg ua haujlwm yuav tsum tau sib sau ua ke ib tsob ntoo 8-meter?
A: Cov neeg ua haujlwm paub txog ntawm peb tus kws tshaj lij tuaj yeem ua tiav cov tshuab erection thiab hluav taws xob sib txuas ntawm 8-meter chav nyob hauv kwv yees li plaub teev.
